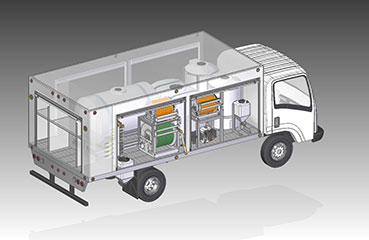

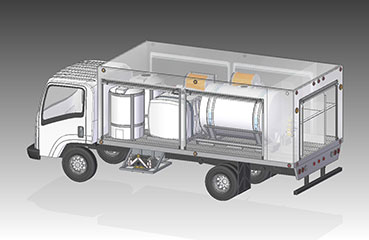

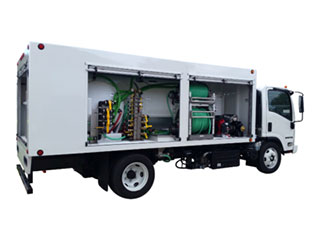

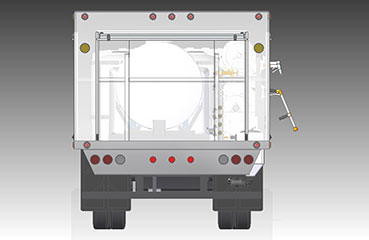

1560 Series Plant & Tree Health Care Custom Spray Truck
The Plant Health Care (PHC) Tree Spray Unit from Chemical Containers is a custom spray truck with a multi-tank system for easy mixing. This 1560 series truck comes standard with a 15' body, 800 gallon capacity, extended spray range, and 5 roll up doors for easy access and security.
Custom pumps, motors and tanks are available as well, just let us know what you need when you request a quote and we’ll modify it to meet your needs.
This Design Includes:
- (1) 400 Gallon Polyethylene Applicator Tank
- (1) 200 Gallon Polyethylene PCO Tank
- (2) 100 Gallon Polyethylene Vertical Tanks
- (1) 10 Gallon Polyethylene Cone Mix Tank
- (1) 6 Gallon Hand Wash Tank
- (1) PTO - UDOR BETA 170 Diaphragm Pump (47.3 GPM, 725 PSI)
- (1) 5.5 HP Honda Engine, Electric Start
- (1) UDOR KAPPA 55 Diaphragm Pump (15 GPM, 550 PSI)
- 12V Shurflo Pump 2088 - Fresh Water
- (2) 300' of 1/2" Spray Hose with Quick Couplers
- (1) 300' of 3/4" Spray Hose with Quick Couplers
- (3) 12V Electric Hose Reels with Roller Guides
- (1) JD9 Trigger Spray Gun
- (1) Turbine Tree Spray Gun

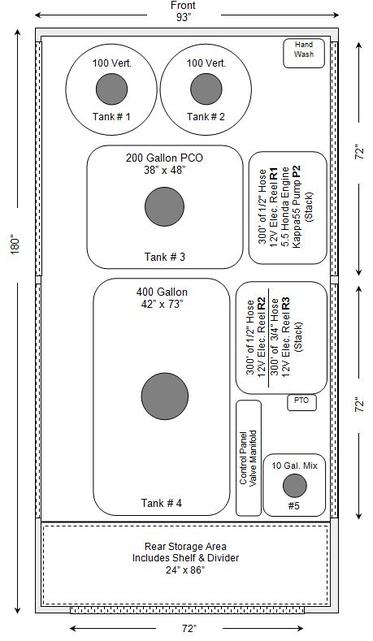

Plumbing Configuration (See Truck Spec Drawing):
- BETA 170 Pump Connected to Tanks 1, 2, 3, 4, and 5
- KAPPA 55 Pump Connected to Hose Reels R1, R2, and R3
- Overhead Fill Connected to Tanks 1, 2, 3, and 4
- Jet Agitation Connected to Tanks 1, 2, 3, and 4
- 2088 Shurflo Pump Connected to Hand Wash Tank with 6' Hose and Nozzle
Truck Specifications:
- Rear Mounted Safety Strobes
- LED Lamps
- Wheel Chocks (1 per Side)
- Air Valves for Winterizing Manifold
- Vacuum Break Overhead Fill Valves
- Stainless Steel Valve Manifolds
- Remote Mounted PTO Controls
- Receiver Style Trailer Hitch with Electric Break Controller
- NEMA Sealed Wiring and Solenoids
- All Aluminum Construction
- (5) 72" Locking Roll Up Doors
