The Salford Valmar 8611 Air Boom Fertilizer Spreader offered by Chemical Containers delivers high capacity, high speed granular product application.

Click here to request a quote on this spreader and find out how we can modify it to best fit your project needs.

The Valmar 8600 series spreader can apply up to 1000 lbs per acre at 8 miles per hour. It includes a Venturi metering system and left/right section control with the option of manual or automatic operation. The 8611 model shown here features an 11 ton hopper that includes a main and secondary hopper.

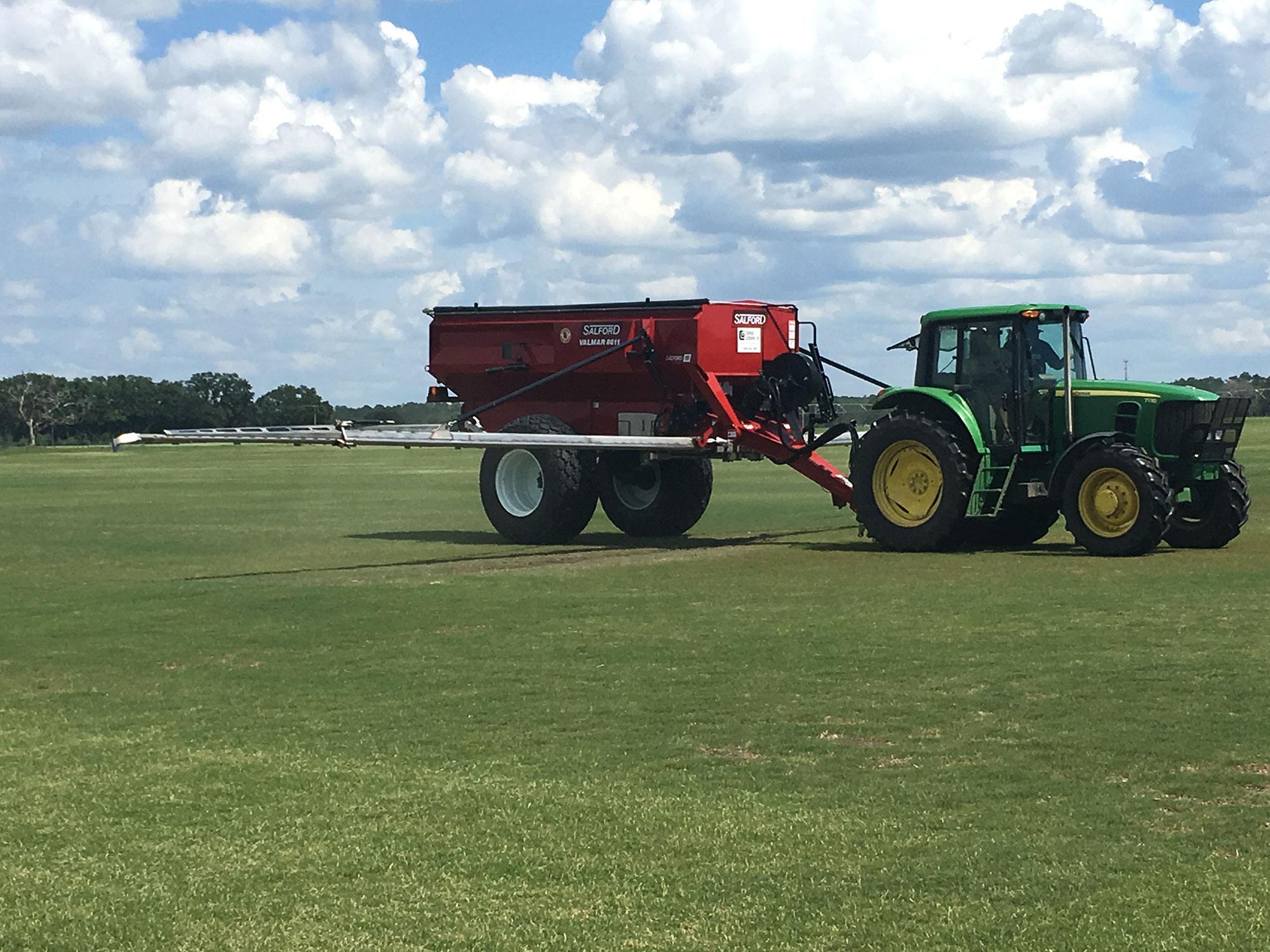

The Valmar 8611 spreader pictured here comes standard with the following features, which can be modified to fit your project needs:

Hopper:

• 11 ton, 357 cu. ft. hopper.
  • 297 cu. ft. main and 60 cu. ft. secondary hoppers.
  • Partition and flip gate allows use of primary and secondary hoppers.
• Painted 409 stainless steel with 2-component epoxy primer and 2-component, cross-linked acrylic top coat paint system.
• Roll tarp installed.
• Hopper screen assembly.

Booms:

• 66 ft. spread width.
• Rubber torsion boom suspension.
• 304 stainless steel construction.
• 7 ft. break-away tips with manual fold.
• 3 inch diameter tubes, 6 per side.
• Two deflectors per tube.

Metering for Main Hopper:

Note: Ground-wheel drive is standard. This unit is equipped with hydraulic drive.

• Two 12 inch stainless steel conveyor chains.
• Hydraulic drive metering.
• Independent hydraulic motors (8 GPM).
• Reduction gearboxes.
• PWM (flow control) valve and motor bypass valves.
• Hydraulic lines and sensor package.
• Oil bath gearboxes.

Metering for Secondary Hopper:

• Two 12 inch metering rollers.
• 28-groove poly rollers for herbicide or small seed.
• 12-groove grey rollers for low rate fertilizer.
• Hydraulic kit including:
• Hydraulic motor, PWM valve, hydraulic lines, electric clutches, and shaft sensors.

Fan:

• 17 inch fan impeller operates at 4700 RPM.
• 9 inch outlet direct to 304 stainless manifold.
• PTO fan drive.
• 1000 RPM CV, 1 3/8 inch 21-spline driveline.
• 1.5 ratio PTO gearbox.
• 4-band belt with tightener.

Chassis:

• Tire and rim: 800/65 R32 R1 lug radial.
• Standard adjustable axle: 82 – 98 inches.
• Spindles with integrated Digi-Star scale link kit.

Automatic Rate Control (For hydraulic-drive option):

• ISOBUS section control kit*.
• 2-motor independent drive.
• Cabling and sensor package.
• For use with 3rd party ISOBUS cab consoles.

Digi-Star scale kit (optional):

• ISOBUS Digi-Star scale control module and cabling.
• For use with ISOBUS display.
