Chemical Containers custom builds Pull-Type Dosing Trailers that are specially designed for crop care.

Click here to request a quote on this type of equipment and find out how we can customize it to fit your needs.

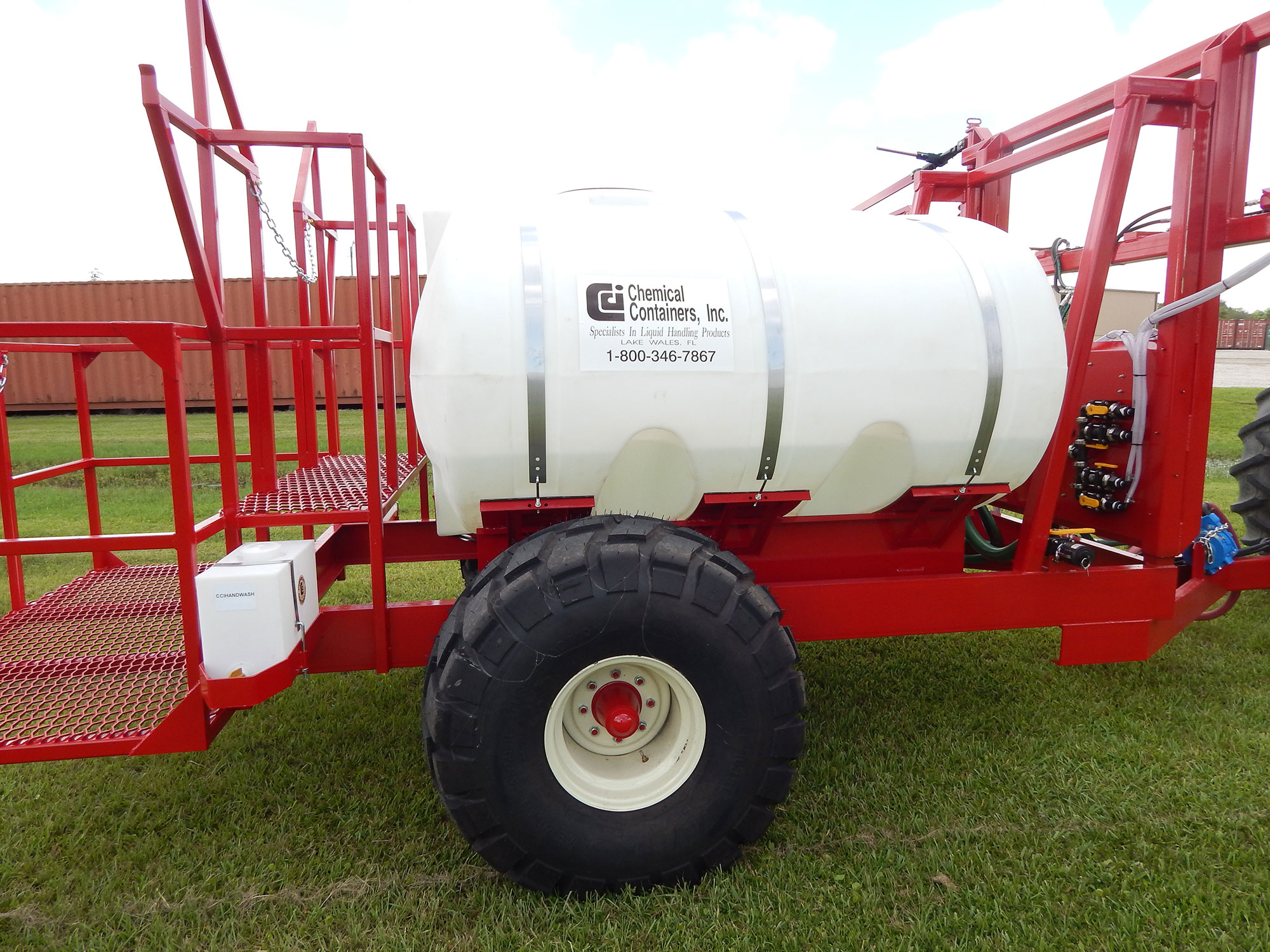

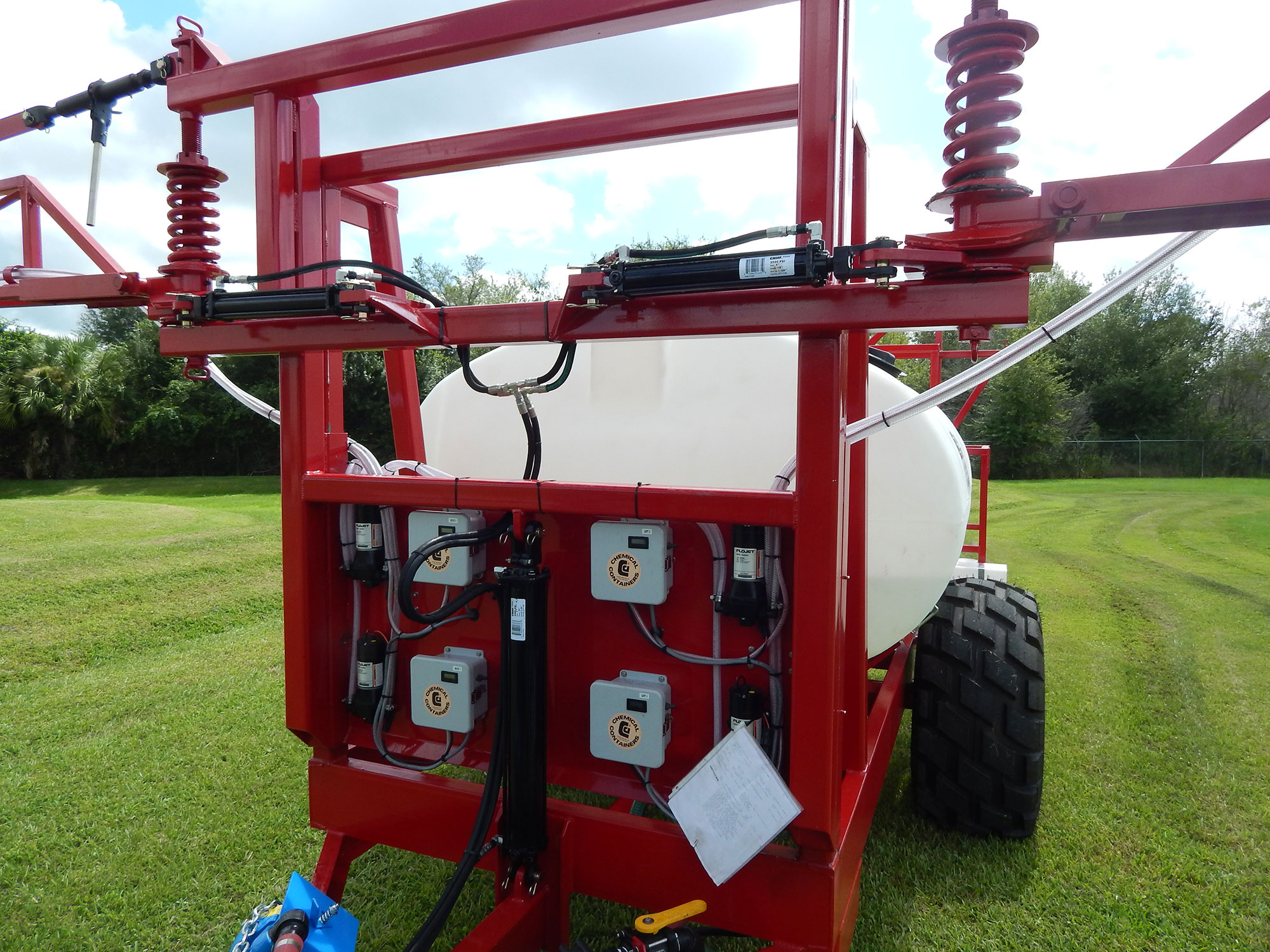

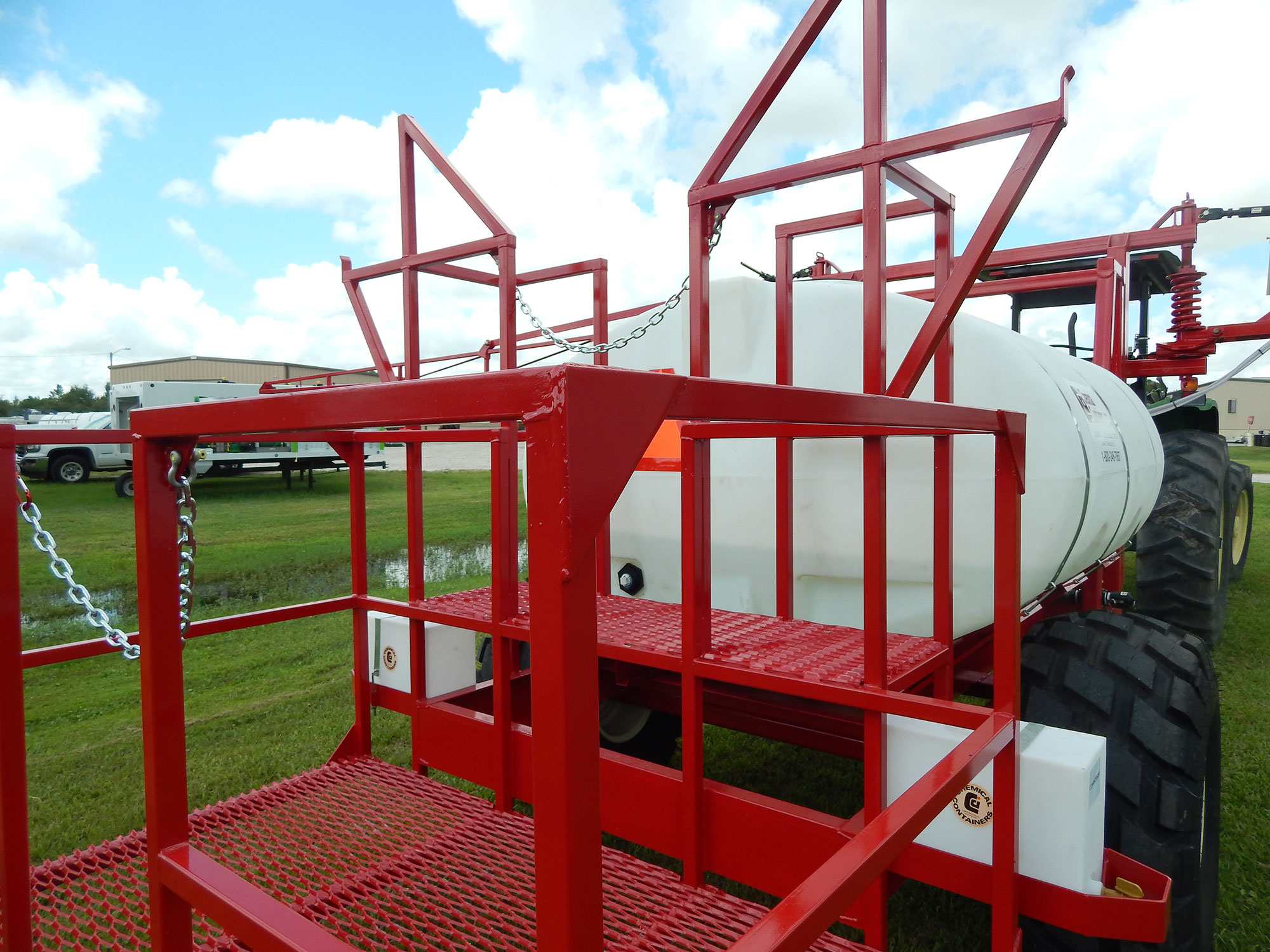

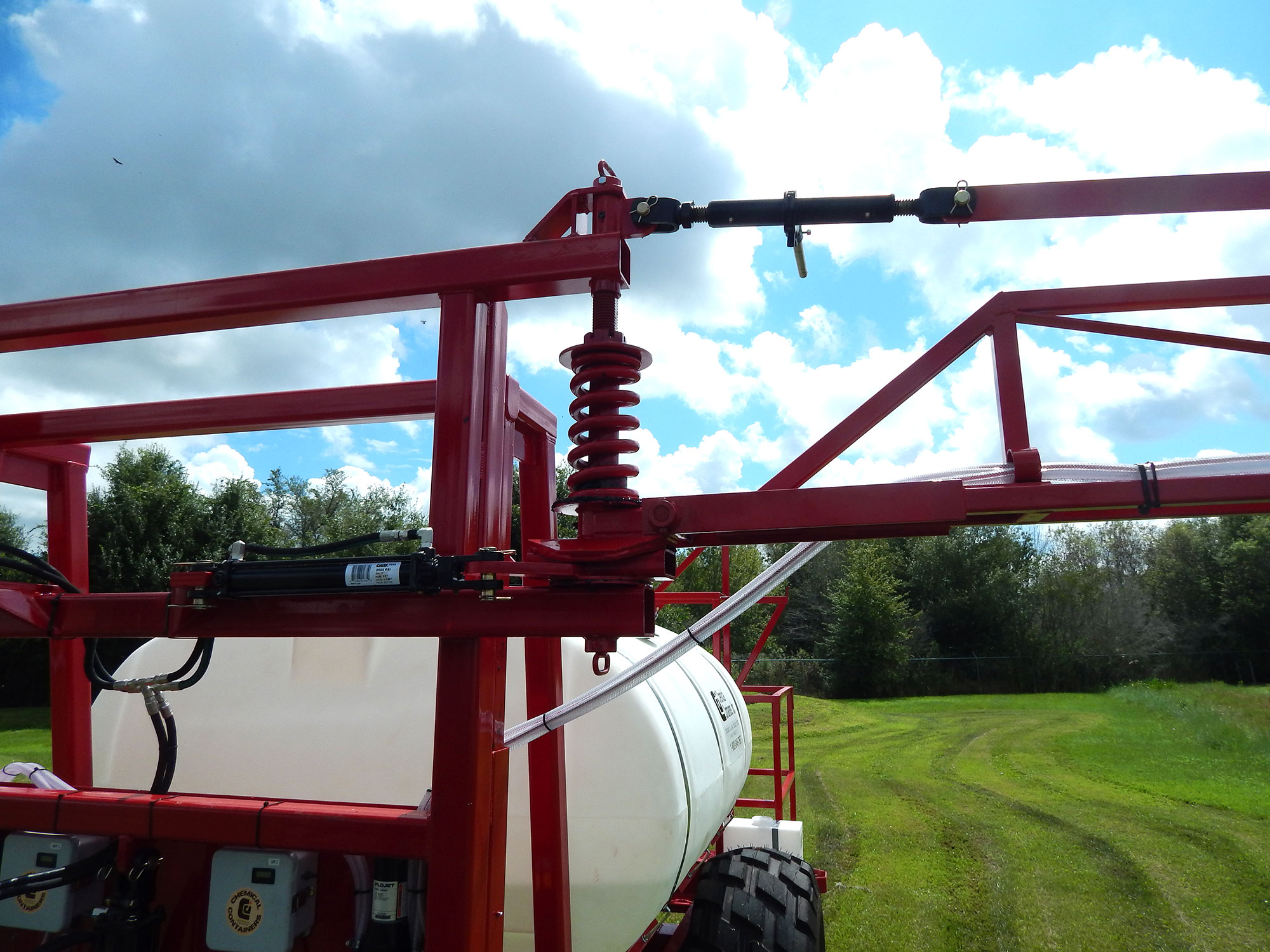

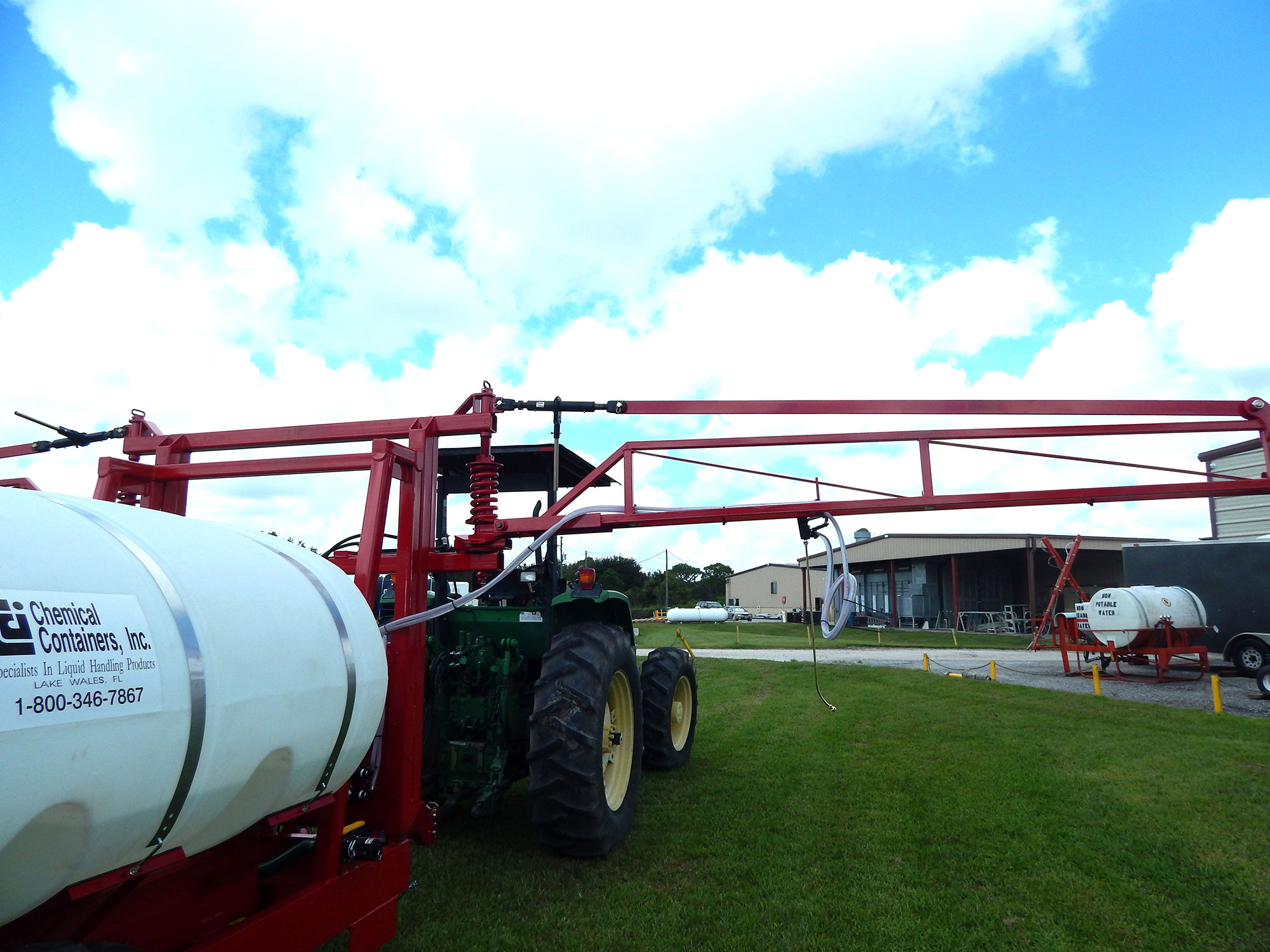

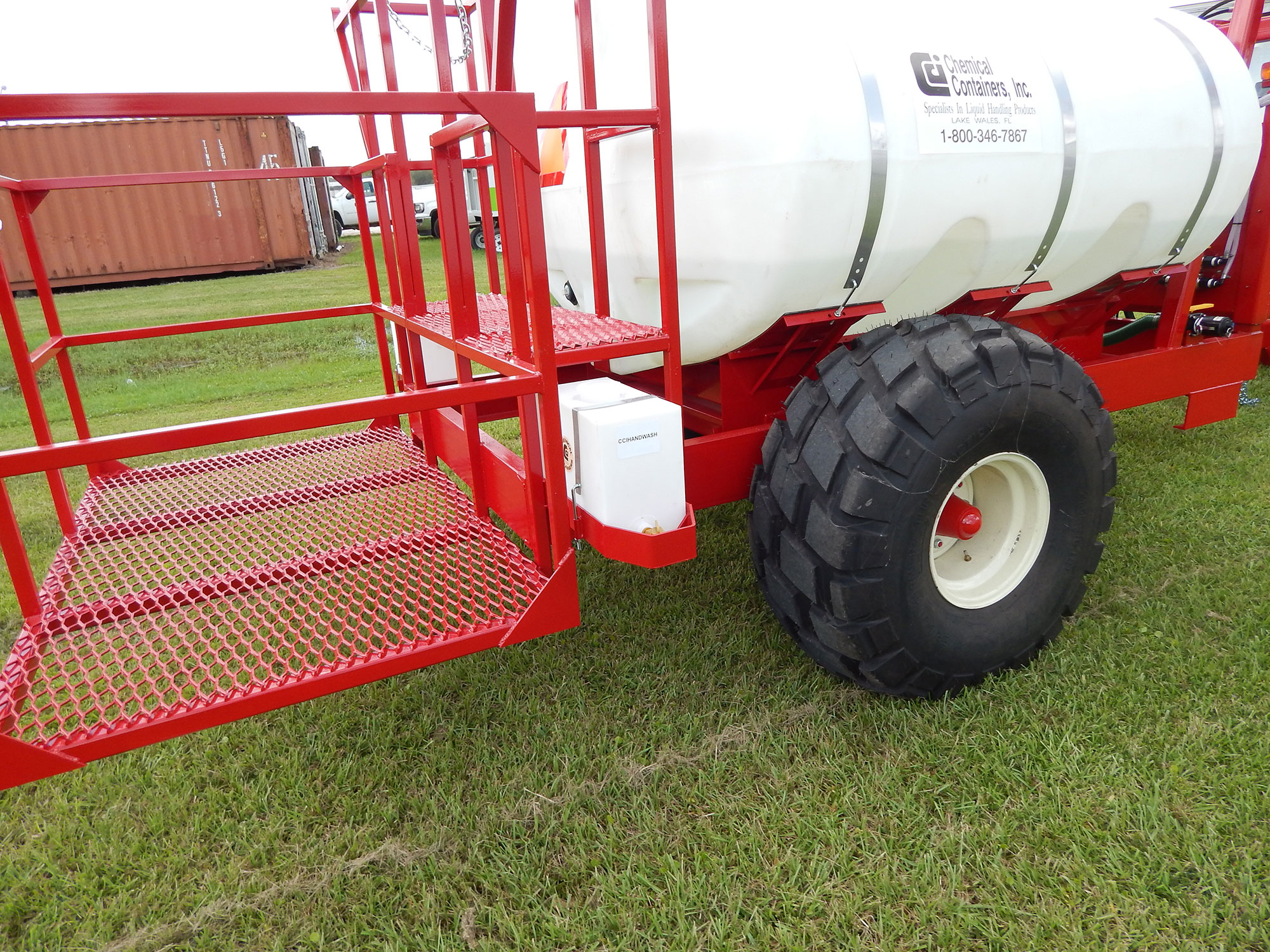

The example dosing trailer you see pictured here comes standard with the following features, which can be modified to fit your project needs:

• 1000 Gallon Polyethylene Elliptical Tank (78” Diameter x 90” Long x 51” High)
• Steel Saddle With Stainless Steel Bands
• Trumpet Agitation
• Front Mount Drench Booms With Spring Break-away
• (4) Admire Guns, (2) Rows Per Side
• TeeJet’s 30 Series Spray gun With Viton Seals With Micro Switch
• Hydraulic Fold-utilizing Tractor Remote
• Hydraulic Height Adjustment (24” of Travel)
• (4) Gun Racks (For Travel)
• (4) CCI Admire Timer Boxes
• Adjustable Timers
• Digital Counters (Re-settable)
• (4) 12-volt Flojet Pumps (3.7 GPM Max : 45 PSI Max)
• Hypro 9006C PTO Driven Centrifugal Pump(Agitation)
• Complete Plumbing Kit: On/off Valves, Suction, Agitation
• All Welded Heavy Duty Painted Steel Trailer
• Single Axle With 21.5L x 16.1 High Flotation Tires
• Pin Hitch
• Safety Chains
• Swing Away Jack
• Rear Working Platfrom (7’ Wide x 48” Deep)
• Rear Access
• Top Rail

Options:

• Hypro 7 Gallon Clean-Load Eductor
