1590 Series Tree & Plant Health Care Custom Spray Truck

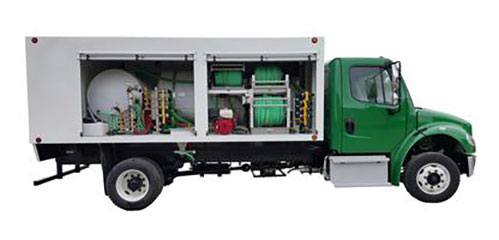

1590 series spray truck cci


The 1590 series Plant Health Care (PHC) Tree Spray Unit from Chemical Containers is a custom spray truck with a fuel efficient design and multi-tank system for customized mixing. It comes standard with a 15.5' body, 900 gallon capacity, extended height spray range, and 5 roll up doors for secure and convenient access.

Custom pumps, spray guns, motors, and tanks are available as well, just let us know what you need when you request a quote and we’ll modify it to meet your needs.

Request Quote

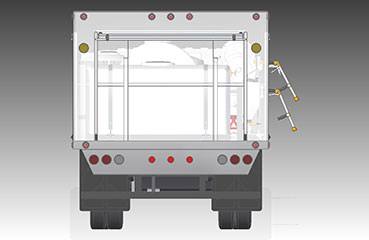

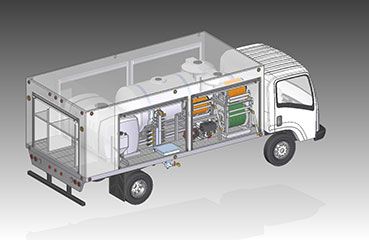

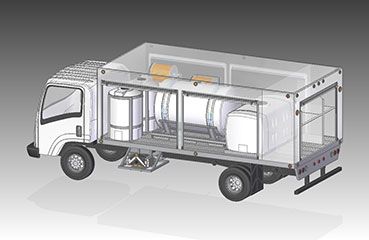

view a 1590 series spray truck cci view b 1590 series spray truck cci view c 1590 series spray truck cci

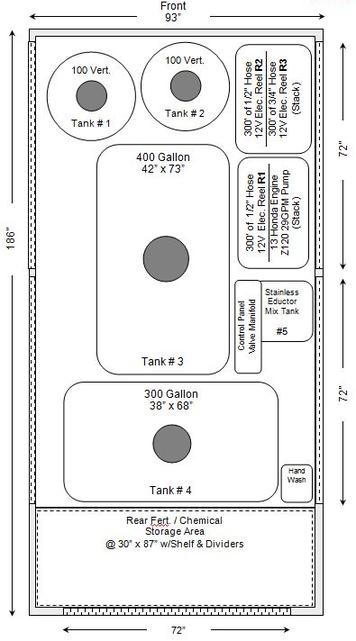

view d 1590 series spray truck cci

This Design Includes:

  • (1) 400 Gallon Polyethylene Applicator Tank with Drain
  • (1) 300 Gallon Polyethylene Applicator Tank with Drain
  • (2) 100 Gallon Polyethylene Vertical Tanks with Drains
  • (1) 10 Gallon Polyethylene Cone Mix Tank
  • (1) Stainless Steel Eductor Mix Bowl
  • (1) 6 Gallon Hand Wash Tank
  • (1) PTO - UDOR BETA 170 Diaphragm Pump (47.3 GPM, 725 PSI)
  • (1) 13 HP Honda Engine, Electric Start
  • (1) UDOR ZETA 120 Diaphragm Pump (29 GPM, 300 PSI)
  • (2) 300' of 1/2" Spray Hose with Quick Couplers
  • (1) 300' of 3/4" Spray Hose with Quick Couplers
  • (3) 12V Electric Hose Reels with Roller Guides
  • (1) JD9 Trigger Spray Gun
  • (1) Turbine Tree Spray Gun

Plumbing Configuration (See Truck Spec Drawing):

  • BETA 170 Pump Connected to Common Manifold
  • ZETA 120 Pump Connected to Tanks 1, 2, 3, 4, and 5 along with Hose Reels R1, R2, and R3
  • Overhead Fill Connected to Tanks 1, 2, 3, and 4
  • Jet Agitation Connected to Tanks 1, 2, 3, and 4

Truck Specifications:

  • Rear Mounted Safety Strobes
  • LED Lamps and Interior Dome Lights
  • Wheel Chocks (1 per Side)
  • Air Valves for Winterizing Manifold
  • Vacuum Break Overhead Fill Valves
  • Stainless Steel Valve Manifolds
  • Remote Sight Tubes for 100 Gallon Vertical Tanks
  • Remote Mounted PTO Controls
  • Receiver Style Trailer Hitch with Electric Break Controller
  • NEMA Sealed Wiring and Solenoids
  • All Aluminum Construction
  • (5) 72" Locking Roll Up Doors

Click here for a 3D CAD PDF of this truck!
